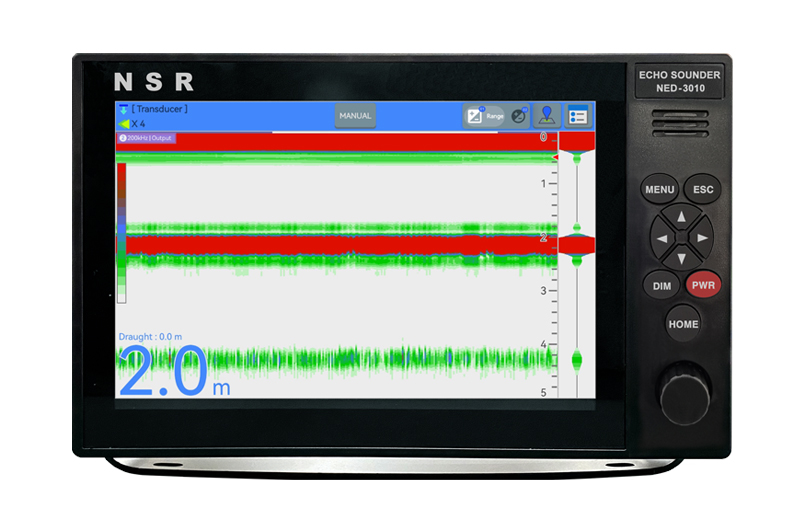

NED-3010 ECHO SOUNDER

Published on: 2022-10-18

NED-3010 EN 20240426s副本.jpg【FEATURES】

NSR’s new echo sounder:

- SDR (Software Defined Radio) technology.

- High accuracy and stability.

- Large color LCD, touch screen operation.

- Android O/S for easy operation.

- Auto depth detection, auto range and auto gain functions.

- BAM alarm function.

- Meet the IMO and ISO standards.

- DNV type approval.

- CCS type approval.





【SPECIFICATIONS】

Channel:

2 channels

Frequency:

200 kHz / 50 kHz

Measure Range:

0.3~200m (200kHz)，2~200m(50kHz)

TX Power:

600 W

O/S:

Android

LCD Display:

Touch screen operation

LCD Size:

10.1 inch

Resolution:

1280×800

Interface:

I/O sentence (IEC 61162-1 & IEC 61162-2)

Power Supply:

DC 24 V (range 9 V ~ 36 V)

Size:

189.8 (H) × 321.3 (W) × 100.6 (D) mm  (Display Unit)

IP Grade:

IP22 (Display Unit), IP67 (Transducer)




NSR NED-3010 ECHO SOUNDER BROCHURE.pdf
