【FEATURES】
- Compliant with IMO MSC.232 (82), IMO MSC.191 (79), IEC 61174, IEC 62288, IHO S52 standard, etc.
- ENC display, illimitable zoom.
- NMEA port×8, RS23 port×2.
- Multi-size Displays to satisfy different vessels.
- Large color LCD with touch screen operation.
- Compatible with UKHO AIO data.
- Compatible with AIS & ARPA Radar overlay display.
- Aluminum case used.
- Real time update ENC by E-Mail.
- Navlog inside for nonpape log record.
- Table or flush mounting for the display unit.
- CPA/TCPA calculate.
- Multi-route design.
- CCS type approval.

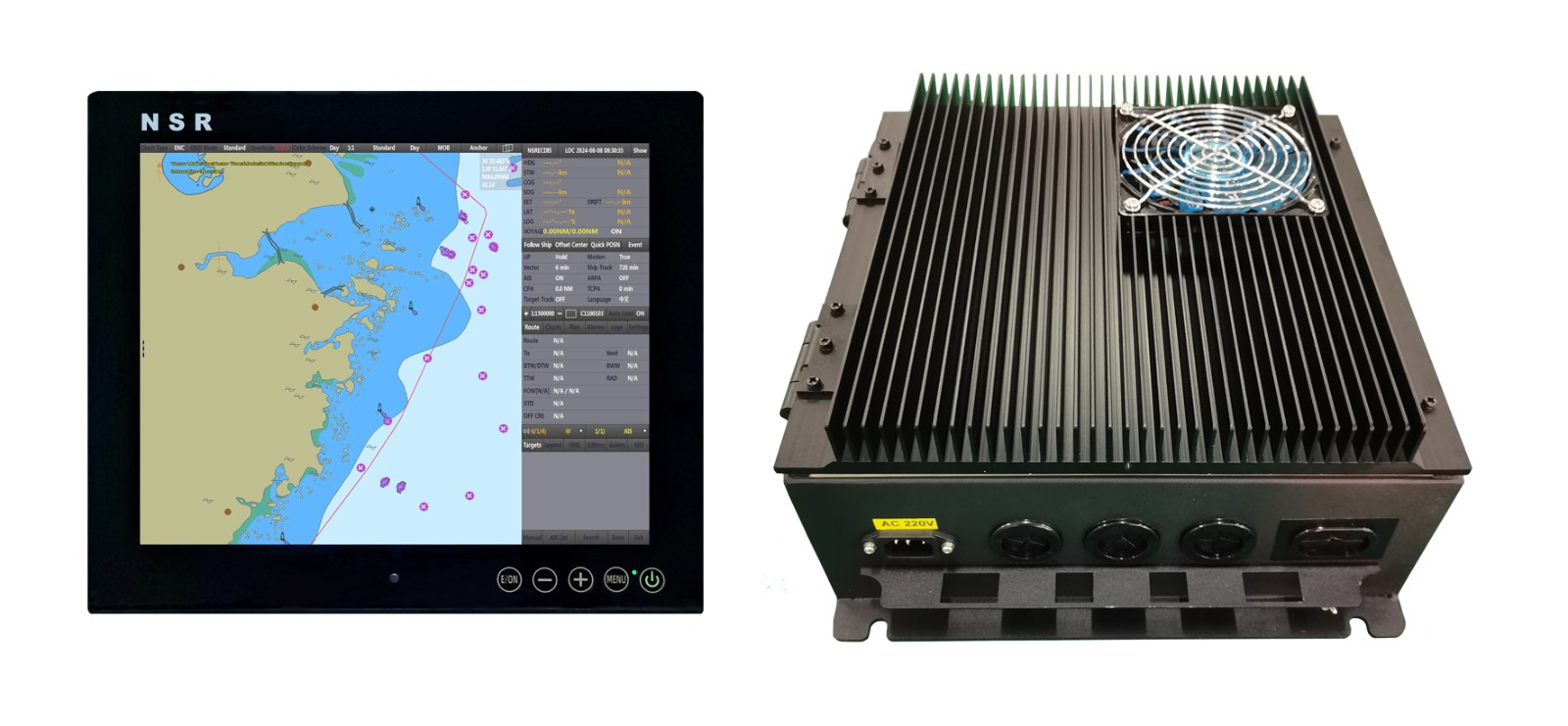

DISPLAY UNT | |
Resolution: | 1280×1024 (19 inch), 1920×1080 (24/26 inch) |
Display Size: | 19 inch / 24 inch / 26 inch |
Protected: | Bonding glass |
Weight: | 8.25 kg (19 inch) / 9.8 kg (24 inch) / 12.5 kg (26 inch) |
MAIN UNIT | |
H/W: | Intel Core i5 8G DDR4 RAM 128G SSD USB×4，LAN×2, HDMI×1 NMEA×8, RS232×2, VGA×1 |
Power: | AC110V/220V |
Size: | 325（W）×370（H）×154.4（D）mm |
Weight: | 12kg |
IP Grade: | IP22 |
S/W | |
ENC Update: | USB |
OPERATION UNIT | |
OperationMethod: | Mouse, Keypad |
NSR NES-3000 ECDIS BROCHURE.pdf
