【FEATURES】
- Conforms to the latest rules, including IMO MSC 128 (75), IMO MSC302 (87), IEC62616, IEC 62923-1, IEC 62923-2 and IEC 62288.

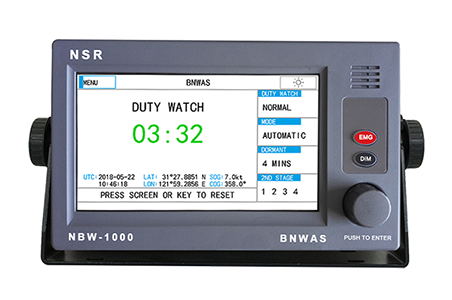

- 7-inch color LCD used in control unit.
- Automatically record ON/OFF and mode change history.
- Pre-stored tones selectable for alarm.
- Password used to set operation mode and dormant time.
- 2nd alarm units can be selected seperately.
- Test function and emergency call available.
- Date interface to BAM/INS.
- CCS type approval.
- DNV type approval.
【SPECIFICATIONS】
| Mode: | Automatic, Manual, Off |
| Alarm: | Visual, 1ST stage audio, 2ND stage audio , 3RD stage audio |
| Dormant: | 3～12 minutes (selectable) |
| Accuracy: | ±5s |
| Sound: | 75~85dB (A) |
Power Input: | DC24V, AC 100V ~ 240V |
| Input Port: | RS422 x 1 port , RESET ON/OFF x 9CH |
| Output Port: | RS422 x 1 port , ALARM x 10CH, FAILURE ALARM OUTPUT x 1CH |
| IP Grade: | IP22 (Control Unit, Junction Box, Alarm Unit), IP56 (Reset Unit) |
NSR NBW-1000 BNWAS BROCHURE.pdf
